130 Bags / Mins Wet Wipes Packaging Machine

Product Categories

Wenzhou Trustar Machinery Technology Co.,Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Add to Cart

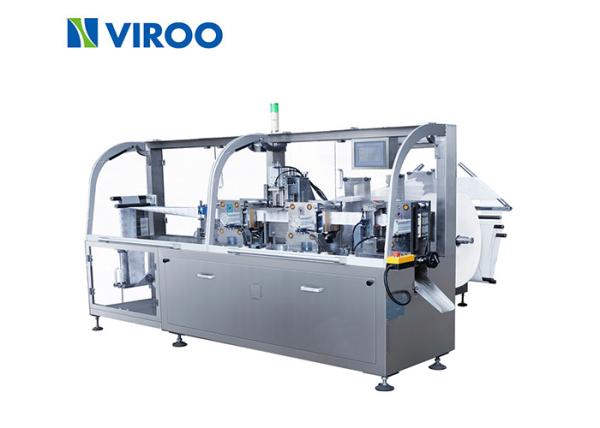

Alcohol Wet Wipes Packing And Making Machine Four Side Seal

Item/model	Model:VPD250-B wet tissue packing machine
Packaging form	Horizontal Four-side sealing/ three side sealing
Packing specification	Length: 50mm-125mm width:50mm -110mm
Wrapping materials	Heat sealable PET, OPP,BOPP /AL/ PE, CPP laminate film.
Max.ext. dia & Int.diameter	Max exterior diameter of film 350mm , Internal diameter 75mm ;
Wet Tissue Material	30-80g/m² air laid paper, non-woven, spun lace non-woven fabric etc
Max.ext. dia & Int.diameter	Max exterior diameter 1000mm, Internal diameter 75mm ;
Folding way	Max 10 folding vertical, and 4 folding horizontal
Inner size(unfold tissue)	Length: 40mm-220mm width:30mm -240mm
Packing speed	80-130 bags/mins
Liquid added range	0-10ml [precision ±0.5ml ;the coefficient of viscosity should under the 20000(cp)]
Installed power	10KW (total power about 2.8KW)
Power supply type	single phase two wires 220V/ Three phase four wires 380V 50/60Hz
Machine finishing	Stainless Steel
Control panel	Colour touch-screen (Language On request)
Output	Packing arm will collect the products and put it onto the conveyor, the number Of the stacks,it can be adjusted and set on the control panel.
Machine noise	≤64.9dB(A)
Air supply	0.6-1.0 Mpas
Air consumption	300-500L/min(w-1.0/10 air compression machine is needed)
Machine dimensions	L2800×W2800×H1800mm
Machine weight	1100Kg
Package size	Plywood cases 316010801900mm one case only

The touch screen can be made in your local language(so you can your staff can operate it easily)

The full machine is covered with Stainless steel in good appearance, also easy to clear and durable. Low operation and maintenance cost.

Full automatic pouch forming, photo electricity correction, no blank edge and fault forming.
