60 Bags / Minute Automatic Face Mask Making Machine

Ask Lasest Price
Brand Name :	HIJ/TRUSTAR
Model Number :	VPD-400B
Certification :	CE
Price :	Negotiable
Payment Terms :	T/T
Supply Ability :	It depends.
Delivery Time :	It depends.

Add to Cart

Product Details
Company Profile

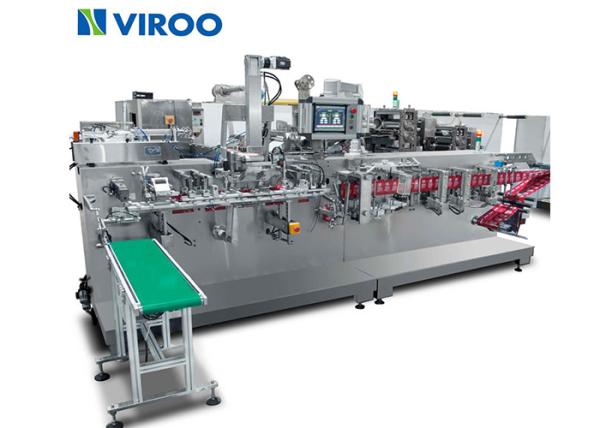

60 Bags / Minute Automatic Face Mask Making Machine

Facial Mask Packing Machine Automatic Full Multi-Function

Product Application

This machine is an on-line bag making design concept. Fully conform to pharmaceutical GMP manufacturing standards and be flexible and easy to transform. Leading bag-making technology, Plus automatic film cutting ,Fold and pouch ;With the unique modular design, the device has the greatest flexibility and intelligence.

VPD400-B sheet facial mask manufacturing line/machine is suitable for making and packing all kinds of nonwoven material facial masks by loading the mask fiber roll material with speed 50~60 bags/min.one machine one operator.can support different facial mask shapes by changing the Die-cut mould.1 layer or multi-layer mask sheets with same or different materials are available. machine function as follow.
1. Cut the mask from the roll material
2. Fold mask
3. Made the pouch/bag from the film roll material or pre-made bags given directly
4. Put the mask into the bag.
5. Fill bag with mask by liquid
6. Seal bag and emboss the lot number.
7. Leak test

Main Technical Parameter:

Prefabricated-bag size		Length:100mm~220mm × Width:110mm- 200mm (L*W)
Wrapping materials		Heat sealable PET, OPP,BOPP /AL/ PE, CPP laminate film.
Bag shape		Square pouch, shaped pouch, zipper pouch(the bag charger is adjustable)
Mask material	Facial sheet	30~80g/m2 Spun-lace Non-woven/Lyocell/silk/cotton
	Carrier sheet	PET/Polyester /polypropylene fiber
Die-cut(Mask shape)		Customized design (notice: manufacture only 1 layer facial mask, the gram per square meter of Non-woven have to above 45 g/m2 )
Max.ext. dia & Int.diameter		max exterior diameter 1000mm, Internal diameter 75mm ;
Automatic material roll splicer		Standard no including (On request)
Unfolded Mask size		Length 230~260mm width 230~260mm
Folding way		On request
Packing speed		40-60 bags/min
Liquid range		Essence Fluid 0-58ml; precision ±1%;the coefficient of viscosity should under the 20000(cp)
Injection heads		Only 1 head
Noise		<70 dB(A) (closed safety door, and lnstall the fans into another room)
Voltage		3phases 4 wires 380V 50/60Hz
Installed power		AC 35Kw ,(machine power About 18 Kw)
Machine finishing		Stainless Steel
Control panel		Colour touch-screen (Language On request)
Air consumption		≥0.8 m³/min(w-1.0/10 air compression machine is needed)
Air supply		0.6-1.0 MPa
Machine weight		About 6000Kg
Machine size		5860mm×2860mm×2230mm
Detection 1: The alarm of materials going to run out (Increase sensor switch of the material roll spun-lace non-woven, when the Diameter is close to run out (the machine will alarm),when it’s run out the machine need to stop running;) Detection 2: Detect the connection of non-woven (detect the connection of the non-woven and excluding this part face mask, note the connect tape should be red color) Optional 1: Stain detection of the Non-woven (detect the grease, stains and something dirty on the face mask, and excluding the dirty face mask in the machine)
